Won Cosjet SR 雙模緊膚雷射

1. Maintenance costs are low (characteristic of Nd:YAG Lasers).
2. Skin color is not altered (does not affect melanin pigment).
3. Surgical operation times are short (separate preheating is not required).
4. Several different treatments are possible with single equipment.

Skin Rejuvenation - 1320nm
The WON-COSJET SR Laser uses high water absorption of 1320nm for non-invasive rejuvenation and shows remarkable results in dermal remodeling by stimulating the fibroblast of the papilla dermis layer and raising collagens, etc.

Cooling air is used to minimize thermal damage of the epidermal lesion and makes possible the largest thermal effect on dermal lesions, allowing safe and easy use.

- Acne Scar
- Acne
- Wrinkles
- Pore Size
- Tightness, Mildness

Hair Removal - 1064nm
The skin penetration of 1064nm wavelength lasers are deeper compared to other wavelengths and, since the effect on melanin is small, can show good results on fine and deeper hair.

Vascular Lesion - 1064nm
Since the deeply penetrating 1064nm wavelength is effectively applied to vascular oxy-hemoglobin, it can also be effective on veins deeply located.

- Deeper Veins
- Spider Leg Vein

* The new 2005 SR Laser functions!!!

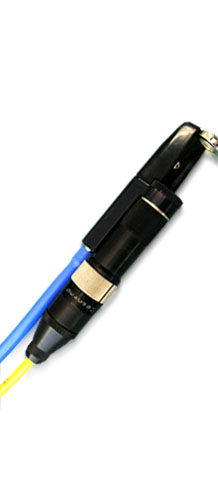

1. Vascular territories are further improved with the application of the 0.7mm hand-piece.
   This makes treatment of veins under 1mm possible
   (patients can resume daily activities straight after surgery)
2. A variety of Beam Spot size
   2, 3, 4, 5, 6, 8, 10mm (7 steps)
3. Easier-to-use functions
   Addition of spot size automatic recognition function
   User-controlled pulse duration (automatic memory can be set up even with the power off)


- Irradiation Type

  Flashlamp-excited Long Pulsed Nd:YAG Laser

- Electrical Requirement

  AC 220 V (10A, 50/60Hz)

- Power Consumption

  2.4 kW (Maximum)

- Dimensions

  220*490*750mm (W*D*H)

- Weight

  40Kg

- Pulse Energy

  1064nm - up to 50J
  1320nm - up to 15J

- Spot Size

  2,3,4,5,6,8,10mm (in one handpiece)

- Pulse Width

  1~100ms, 300µs

- Energy Fluency

 Spot
2mm
3mm
4mm
5mm
6mm
8mm
10mm

1064nm
1592
707
398
255
177
99
64

1320nm
478
212
119
76
53
30
19

300§Á
159
71
40
25
18
9.9
6.4

- Repetition Rate

  up to 10Hz

- Beam Delivery

  Flexible optic cable and handpiece

- External Air Cooling

  Contact Cooling System (Sapphire Window)

- Pilot Laser

  Diode Laser, 5mW, 635nm

- Display

  128*240 Graphic LCD

- Menu Mode Touch-pads

  Keypad for treatment parameter selection & Modification from Menu

- Parameter Memory

  Max. 30 parameters memorable(EEPROM)

- Radiation Control

  Foot Switch

- Class of Laser

  Class 4

- Device Cooling

  Air & Water-cooling system

- Power Supply

  Half-bridge Parallel-loaded Resonant Converter
