Utech Nain 3000 Nd Yag 雷射去黑斑，去紋身
Features
Operators can use with two kinds of adjustable pulse – 1064nm, 532nm .This unit is designed user-friendly.
- Dermal Pigmentented lesions, tattoos, Ota’s Nevus, freckles, dark spots
- Small vascular lesions, angioma, strawberry mark
- soft peel , epidermal pigmented lesions, whitening
Laserapplication benefits
- Great speed of procedure accomplishment
- Instantaneous coagulation and safe operation
- Reduction of edema and anaesthesia/analgesia
-Elimination of post-operation complications with significant reduction of pain and bleeding
- Less patient discomfort and good patient acceptance
-Precision and control of operation
-Very effective for various tattoos and chromophores
-Maintenance of pure & whitening skin
Main applications
Dermatology , plastic surgery, general surgery , obstetrics, urology, family medicine
Specifications
|
Laser type |
Q-Switched Nd :Yag |
|
Wavelength |
1064nm, 532nm |
|
Output energy |
1064nm; 1200mj/ 532nm;600mj |
|
Aiming beam |
5mW Diode laser beam 650nm (Light Adjustalbe) |
|

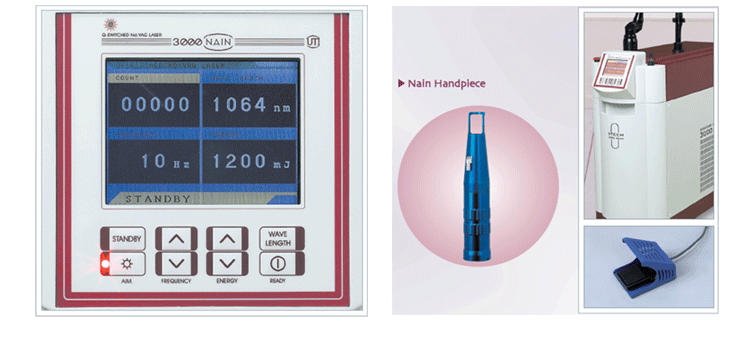

Control Panel |
Wide LCD panel display and soft touch |
|
Repetition Rate |
1~10Hz LCD Microprocessor controlled |
|
Spot size |
1 to 7 mm Zoom handpiece , 16mmNain peel handpiece |
|
Mode |
VRM mode |
|
Delivery |
7 Jointed Articulated arm with counter balance |
|
Cooling system |
Temperature control chiller |
|
Ambient Temperature |
10-30℃ |
|
Humidity |
≤ 80% |
|
Input Power |
AC 110/220volt 50/60 HZ Single phase |
|
Dimensions |
350x900x910mm P(WxDxH) |
|
Weight |
105KG |
——
高品质、更有效地去除色斑和纹身
—— 宽屏彩色液晶显示、轻触按键，卓尔不凡
—— 技术超前、操作简便、更具人性化
3000 NAIN是一台功能强大、效率卓越的激光治疗系统，拥有最新的Q-SWITCH和电源技术，使得能量输出更加强大、治疗效果更加显著。她是韩国医用激光领域的菁英们数十年辛苦耕耘的成果。
☆
适应
＞真皮色素损伤
＞纹身
＞太田痣
＞血管瘤
＞表皮色素损伤
＞皮肤斑点
＞角质层剥离
☆
性能特点
＞调Q激光具有双重波长。
＞调Q激光专门用来治疗纹身和色斑。
＞1064nm（纳米）的光束能有效去除纹身墨迹，而不会对表皮黑素组织产生大的影响。
＞而黑色素又对532nm的光束很敏感，因此可用它来很专业地祛除色斑。
＞另外，血红素对532nm光束也很敏感，所以它也可用来切除小血管瘤。
☆
技术规格
激光类型
Nd：YAG
Q-Swith
波长
1064nm/532nm
能量输出
1064nm：1200mj/532nm：600mj
瞄准光束
5mW 650nm半导体激光束（光线可调）
脉冲宽度
5—8ns
控制面板
宽屏彩色液晶显示，轻触按键
重复频率
1—10Hz微处理器控制
光斑大小
1—7mm快速手柄控制，16mm专用手柄
模式
高斯模式
导光臂
7关节自平衡
冷却系统
压缩机恒温制冷
工作温度
10℃—30℃
工作湿度
≤80%
输入电源
220V 50/60Hz
整机尺寸
350×900×910mm
整机重量
105Kg
☆
附件
＞快速手柄
＞专用剥离手柄
＞医生防护眼镜
＞
病人防护眼镜
＞操作手册
＞电缆
＞脚踏开关
