Surgitron The Future of Surgery EMC

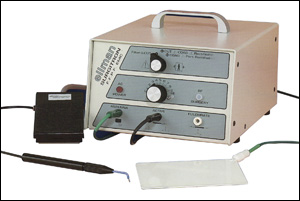

The ellman Surgitron® FFPF EMC features a continuously linear power setting for precise, predictable control. This promotes faster healing with minimal scarring and serves to eliminate unfavorable post - operative conditions such as trauma, pain, swelling and infection. Ellman Surgitron® EMC high frequency Radiosurgical device is equipped with an audio tone that indicates when the device is activated. This tone will be heard immediately upon activation of the Surgitron® device, either by Footpedal or by Fingerswitch.
Distinct Advantages
• Reduced
surgical time
• Improved visibility of operative field
• One device from incision to closure
• Maximized hemorrhage control
• Pinpoint coagulation in a wet field
• General Surgery and Dental applications
• Maximum patient safety
• Minimal tissue alteration
• Minimal burning or charring of the tissue
• Bacteria- free Incisions
Bipolar Coagulation
Pinpoint, Micro-Fine coagulation technique. The high frequency radiowaves
travel only between the two poles of the bipolar forceps. No antenna plate is
needed for this modality. The use of high-frequency radiowaves prevents tissue
aghesion to the forceps, making it ideal for even the most delicate tissue
structures.
1. Fully Filtered Waveform:
Designed for maximum, micro-smooth cutting capability with little, if any, lateral tissue damage. Ideal for initial skin incision and for obtaining biopsy specimens. Best cosmetic result. Fastest healing.
2. Fully Rectified Waveform:
Designed for equal amounts of cutting and coagulating capability. Ideal for subcutaneous tissue dissection and planning of soft tissue. Especially useful in vascular areas while maintaining minimal amounts of lateral heat and tissue damage. Superior healing and cosmetic results.
3. Partially Rectified Waveform:
Designed for direct and indirect hemostasis techniques. Does not create charring and necrotic tissue thereby reducing healing time. Tissue does not stick to the instrument hence reducing interruptions in surgery. This waveform can be used to perform both monopolas and bipolar coagulation.
4. Fulguration:
Designed for spark- generated current. This waveform produces maximum char and necrosis. High lateral heat for maximum hemostasis. Ideal for intentional destruction of diseased tissue.
Superior Results
ELLMAN
SURGITRON F.F.P.F. EMC型/ELLMAN SURGITRON RADIOLASE I型/ELLMAN SURGITRON RADIOLASE
II型
采用了最先进的专利定向射频电波发射技术，发明并生产了具有切割、止血、消融、蒸发、清除、收缩等多种功能和用途的射频电波刀，将手术的安全性、可控性、精确和功能性提高到全新的水平，开创了许多新的治疗方式，是手术治疗史上具有划时代意义的革命。
1.技术参数
频率：3.8MHz/4.0MHz
电压：220/240V
功率：50W/140W
体积：22.5x23x13(cm)
五种工作方式及波形：
●切割-全滤过波形
●切凝－全校正波形
●凝血－部分校正波形
●电灼－消融波形
●双极电凝
2.主要功能
●精确切割、止血效果(切割精度15微米)。
●微创，损伤小，术后疼痛轻，最小的疤痕和色素沉着，美容效果出色，恢复快比常规手术恢复期短2-3天。
●低温、无炭化、无粘连、无水肿。
●安全、无电流通过人体。
●发射极绝缘可弯曲、做成不同形状和大小应用。
●使各种美容整形手术达到了完美的结果。
●主机小巧，便于携带，安全可靠，对场地无特殊要求。
